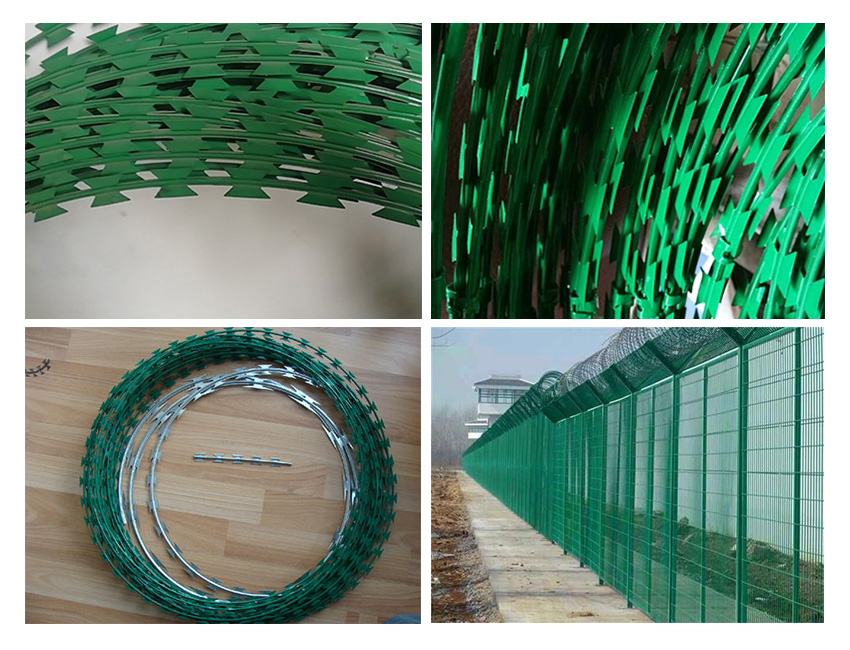

Plastic Razor Barbed Wire

Reference Number

Thickness

(mm)

Wire Dia.

(mm)

Barb Length

(mm)

Barb Width

(mm)

Barb spacing

(mm)

BTO-12

 0.5±0.05

2.5±0.1

12±1

15±1

26±1

BTO-15

0.5±0.05

2.5±0.1

15±1

15±1

33±1

BTO-22

0.5±0.05

2.5±0.1

22±1

15±1

34±1

BTO-30

0.5±0.05

2.5±0.1

30±1

18±1

45±1

CBT-25

0.5±0.05

2.5±0.1

25±1

16±1

40±1

CBT-60

0.5±0.05

2.5±0.1

60±1

32±1

100±1

CBT-65

0.5±0.05

2.5±0.1

65±1

21±1

100±1

Outside Diameter

No.of Loops

Standard Length per Coil

Type

Notes

300mm

33

4-5m

CBT-60.65

Single coil

450mm

33

7-8m

CBT-60.65

Single coil

500mm

56

12-13m

CBT-60.65

Single coil

700mm

56

13-14m

CBT-60.65

Single coil

960mm

56

14-15m

CBT-60.65

Single coil

450mm

56

8-9m(3 clips)

BTO-10.12.18.22.28.30

Cross type

500mm

56

9-10m(3 clips)

BTO-10.12.18.22.28.30

Cross type

600mm

56

10-11m(3 clips)

BTO-10.12.18.22.28.30

Cross type

600mm

56

8-10m(5 clips)

BTO-10.12.18.22.28.30

Cross type

700mm

56

10-12m(5 clips)

BTO-10.12.18.22.28.30

Cross type

800mm

56

11-13m(5 clips)

BTO-10.12.18.22.28.30

Cross type

900mm

56

12-14m(5 clips)

BTO-10.12.18.22.28.30

Cross type

960mm

56

13-15m(5 clips)

BTO-10.12.18.22.28.30

Cross type

980mm

56

14-16m(5 clips)

BTO-10.12.18.22.28.30

Cross type
