Nickel woven wire mesh is a kind of filter screen mesh made with nickel wire materials N2, N4, N6, N8, etc. The most popular nickel wire mesh material is N4 and N6. The main nickel content of N6 is more than 99.5%. N2 has highest nickel content of more than 99.98%. N8 has the lowest nickel content of 99% min.
Nickel Wire Mesh Application
Nickel N4/N6/N8 wire mesh has wide application in the electronic and aerospace industries. Also suitable for chemical and caustic handling equipment and piping, magnetostrictive devices and food processing equipment.
Nickel Wire Mesh Property
Highly resistant to caustic alkalis, It has a maximum carbon level of 0.15%, Highly ductile in wide range of temperature
Product Characteristic
Mesh
Wire Diameter(mm)
Opening(mm)
Weight(kg/m2)
30
0.234
0.61
0.8
32
0.234
0.56
0.84
36
0.234
0.47
0.95
38
0.193
0.48
0.70
40
0.193
0.44
0.80
50
0.152
0.36
0.58
60
0.122
0.3
0.45
80
0.12
0.198
0.58
80
0.102
0.216
0.4
200
0.051
0.077
0.27
200
0.041
0.086
0.017
220
0.041
0.074
0.19
240
0.041
0.065
0.2
250
0.041
0.061
0.22
260
0.041
0.057
0.22
280
0.031
0.06
0.14
300
0.031
0.054
0.14

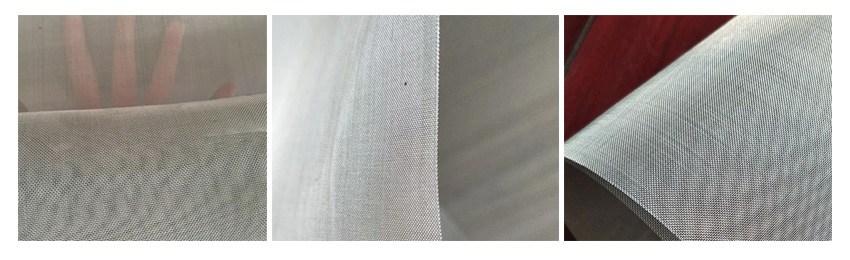

Product Details

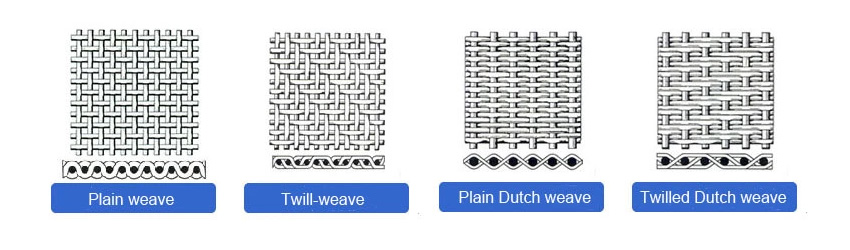

Weave Type
