Warranty: 1 Year
Type: Tile Forming Machine
Speed: 1-10m/min
Use: Roof
Place of Origin: Hebei, China
Weight: 13 tons
Features of Deck Roll Forming Machine:
The metal deck produced by floor decking roll forming line has high strength with big wave length. It adheres well to concrete.
Used on high building, it not only saves steel mold plate, but also reduces the weight of story.
|
Model: |

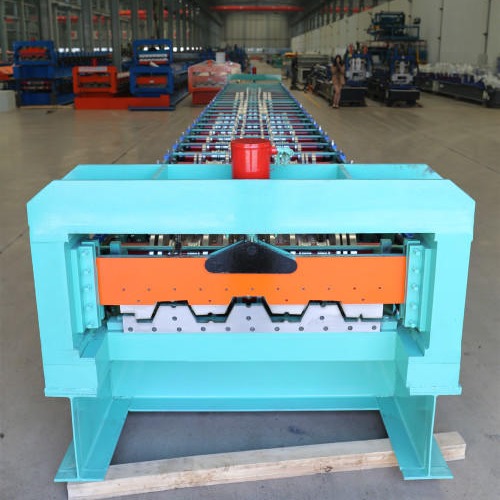

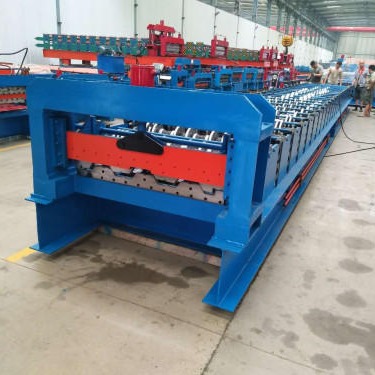

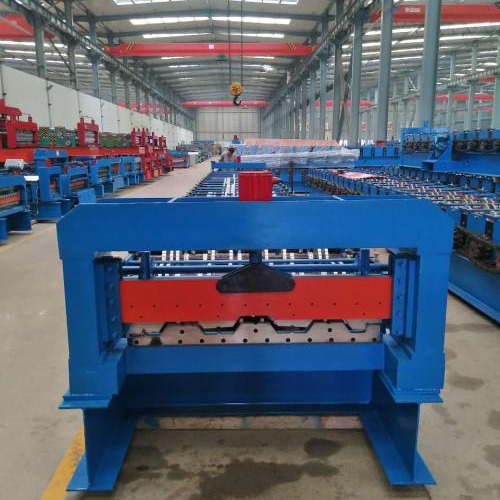

688 Floor Deck Roll Forming Machine
|
|
|
|
Transmission: |
gear/chain transmission |
Rack: |
400H steel |
|
Main motor reducer: |
15KW power (Shanghai LICHAO Brand) |

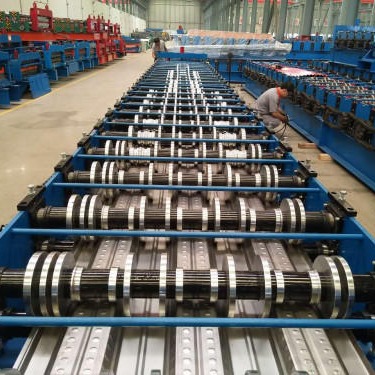

forming rollers: |
24 |
|
Speed: |
1-10m/min |
Panel thickness: |
0.3-1.2 mm |
|
Roller material: |
45# steel |
Bearings: |
Chinese model 6210
|
|
Spindle: |
45# steel |
shaft diameter: |
Φ70 mm |
|
Shear punching error |
±2 mm |
|
|
Components : decoiler, roll former, shear, PLC control system, etc.

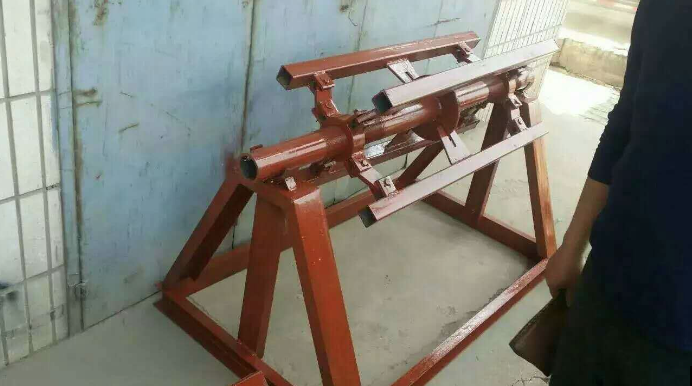

Decoiler
Gear/chain transmission
Feeding rack
Coil inner diameter: ø500 mm (can be customized to other sizes)
Coil width: 1 meter
Load capacity: 5 t
3. Hydraulic cutting: a hydraulic shear is used after the length is fixed by the PLC.
1) Maximum plate thickness: 0.8 mm.
2) Hydraulic station motor: 3 kW.
3) Profiles are not deformed after cutting.
4) Speed: 1-14m/min (based on the length of the product).

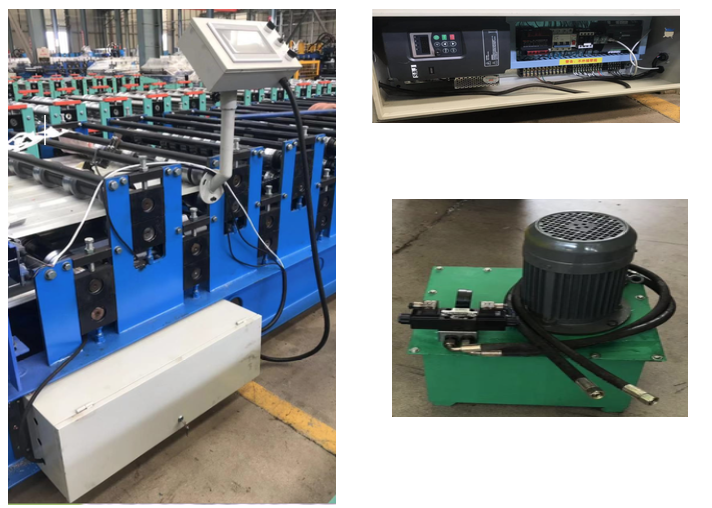

4. Computer controlled system

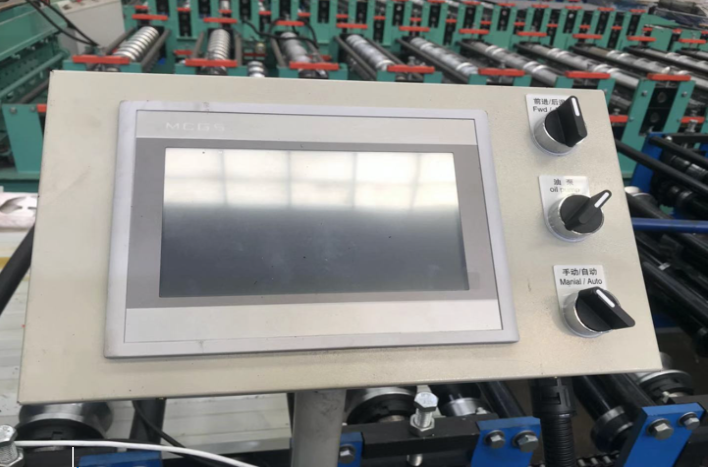

Touch Screen : KUNLUN Brand
PLC: XINJE Brand
Frequency Converter: SAJ Brand
Low Voltage Electrical System: DELIXI Brand
Encoder : ROUNDSS Brand
(Brands can be customized according to customer needs)

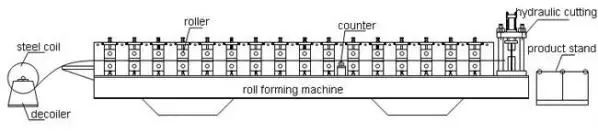

Process flow
Manual uncoiling→Guided feed→Roll forming→Fixed length cutting→Panel exit at run out table
Profile sizes
(Note: we can also provide other profiles according to the client's specifications).
