Warranty: 1 Year
Type: Tile Forming Machine
Speed: 1-14m/min
Use: Roof
Place of Origin: Hebei, China
Weight: 5.3 tons
This equipment can produce profiles according to Chinese specification920.
Color Steel roll forming machine can produce the roofing sheet that resist buckling under concentrated loads reducing the chance of damage.
|
Model: |

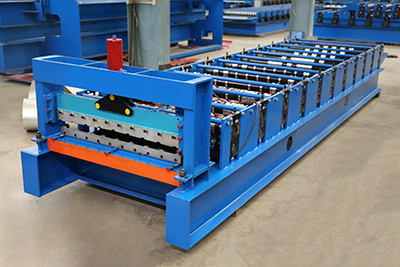

920 Colored Steel Roll Forming Machine |
|
|
|
Transmission: |
gear/chain transmission |
Rack: |
welded with 300H steel |
|
Main motor reducer: |
3KW power (Shanghai LICHAO Brand) |
forming rollers: |
11 |
|
Speed: |
1-14m/min |
Panel thickness: |
0.3-0.8 mm |
|
Roller material: |
45# steel |
Bearings: |
Chinese model 6210
|
|
Spindle: |
45# steel |
shaft diameter: |
Φ70 mm |
|
Shear punching error |
±2 mm |
|
|
Components : decoiler, roll former, shear, PLC control system, etc.
Decoiler
Gear/chain transmission
Feeding rack
Coil inner diameter: ø500 mm (can be customized to other sizes)
Coil width: 1 meter
Load capacity: 5 t
3. Hydraulic cutting: a hydraulic shear is used after the length is fixed by the PLC.
1) Maximum plate thickness: 0.8 mm.
2) Hydraulic station motor: 3 kW.
3) Profiles are not deformed after cutting.
4) Speed: 1-14m/min (based on the length of the product).
4. Computer controlled system
Touch Screen : KUNLUN Brand
PLC: XINJE Brand
Frequency Converter: SAJ Brand
Low Voltage Electrical System: DELIXI Brand
Encoder : ROUNDSS Brand
(Brands can be customized according to customer needs)
Process flow
Manual uncoiling→Guided feed→Roll forming→Fixed length cutting→Panel exit at run out table
Profile sizes
(Note: we can also provide other profiles according to the client's specifications).
