Warranty: 1 Year
Type: Tile Forming Machine
Speed: 1-3m/min
Use: Roof
Place of Origin: Hebei, China
Weight: 9 tons
This equipment can produce profiles according to Chinese specification 828.

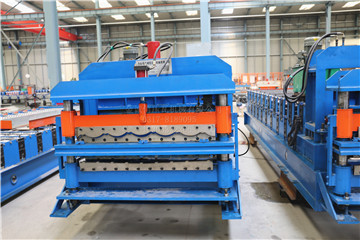

Glazed tile roofing roll forming machine can produce the roofing sheet that resist buckling under concentrated loads reducing the
chance of damage.
|
Model: |
828 glazed tile roll forming machine |
|
|
|
Transmission: |
gear/chain transmission |
Rack: |
welded with 300H steel |
|
Main motor reducer: |
3KW power (Shanghai LICHAO Brand) |
forming rollers: |
9 |
|
Speed: |
1-3m/min |
Panel thickness: |
0.3-0.8 mm |
|
Roller material: |
45# steel |
Bearings: |
Chinese model 6210
|
|
Spindle: |
45# steel |
shaft diameter: |
Φ70 mm |
|
Shear punching error |
±2 mm |
|
|

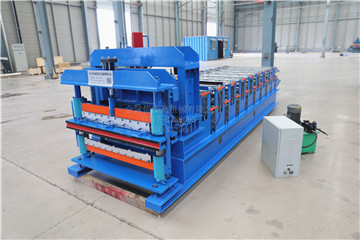

Components : decoiler, roll former, shear, PLC control system, etc.

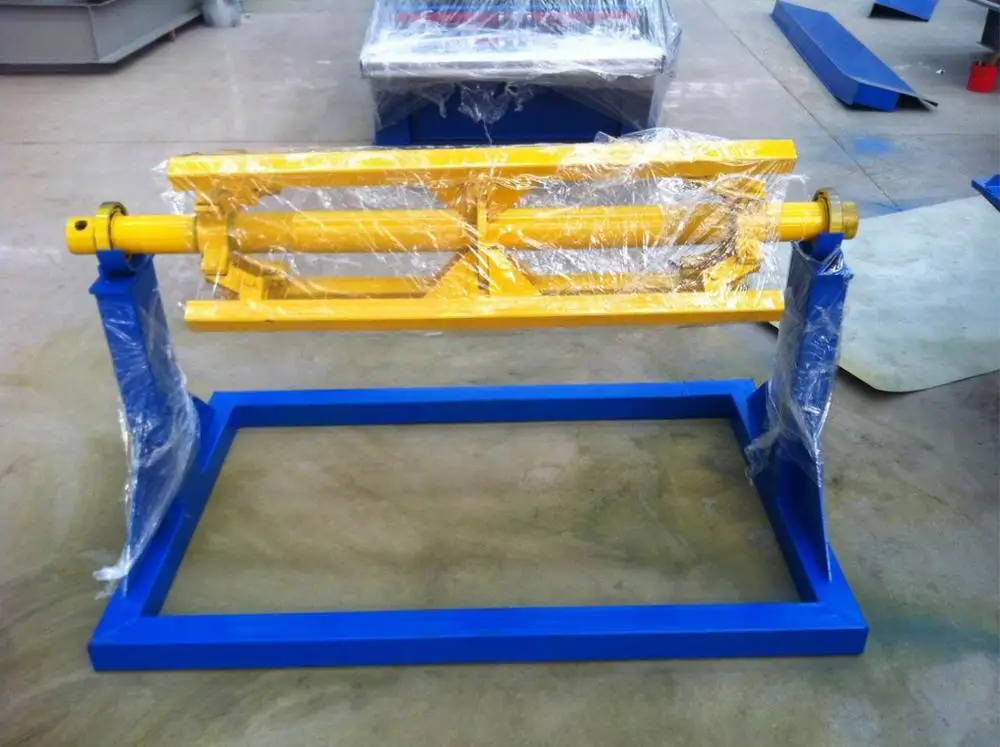

Decoiler
Gear/chain transmission
Feeding rack
Coil inner diameter: ø500 mm (can be customized to other sizes)
Coil width: 1 meter
Load capacity: 5 t

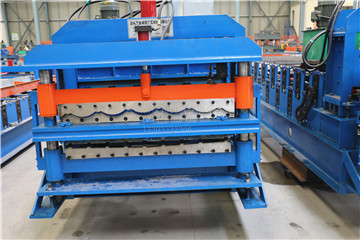

3. Hydraulic cutting: a hydraulic shear is used after the length is fixed by the PLC.
1) Maximum plate thickness: 0.8 mm.
2) Hydraulic station motor: 3 kW.
3) Profiles are not deformed after cutting.
4) Speed: 1-14m/min (based on the length of the product).
4. Computer controlled system
Touch Screen : KUNLUN Brand
PLC: XINJE Brand
Frequency Converter: SAJ Brand
Low Voltage Electrical System: DELIXI Brand
Encoder : ROUNDSS Brand
(Brands can be customized according to customer needs)
Process flow

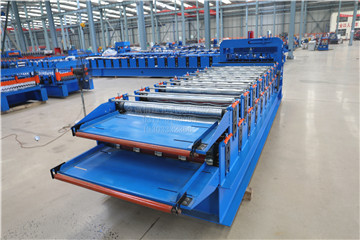

Manual uncoiling→Guided feed→Roll forming→Fixed length cutting→Panel exit at run out table

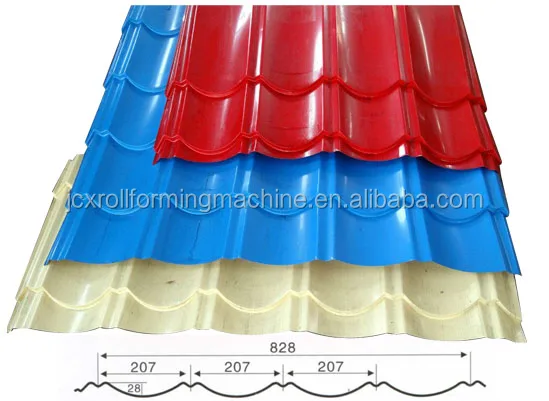

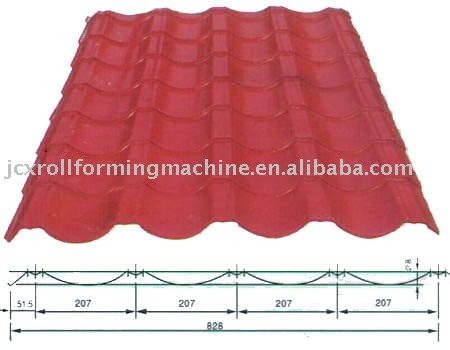

Profile sizes
(Note: we can also provide other profiles according to the client's specifications).

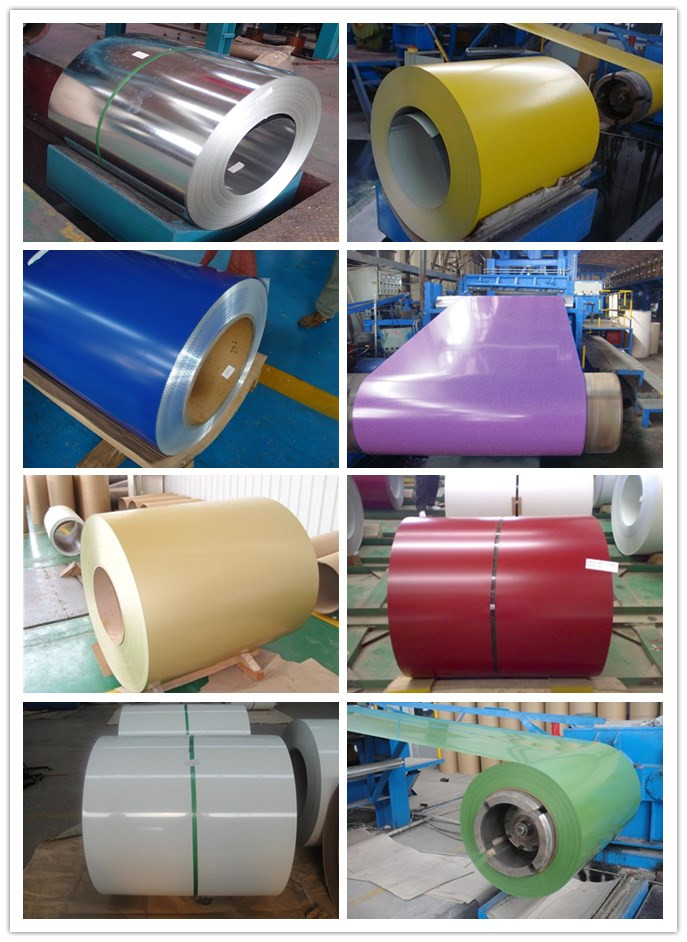

The machine can make Aluminum coil,steel coil, Galvanized steel coil .
Material of main equipment:
Roller material: high grade NO.45 forged steel, plated hard chrome on the surface of roller with thickness 0.05mm.
Active shaft material: high grade NO.45 carbon wrought steel at diameter 72mm.
Cutting blade: Cr12 mould steel with quenched treatment.
They are widely used as the roof of garden like factory, hotel, exhibition center, villa, civil construction, etc.
Material of main equipment:
Features of the production line
1)Professional designing for manufactures roofing & walling
2)Automatically continually manufactures high quality product with PLC.
3)Easy operation : Directly input the data on the touchable screen.
4)Customers decide the profile of products.
5)Saving time and cost owing to high speed running with hydraulic system.
6)One year warranty.
